Bogie Guards Van

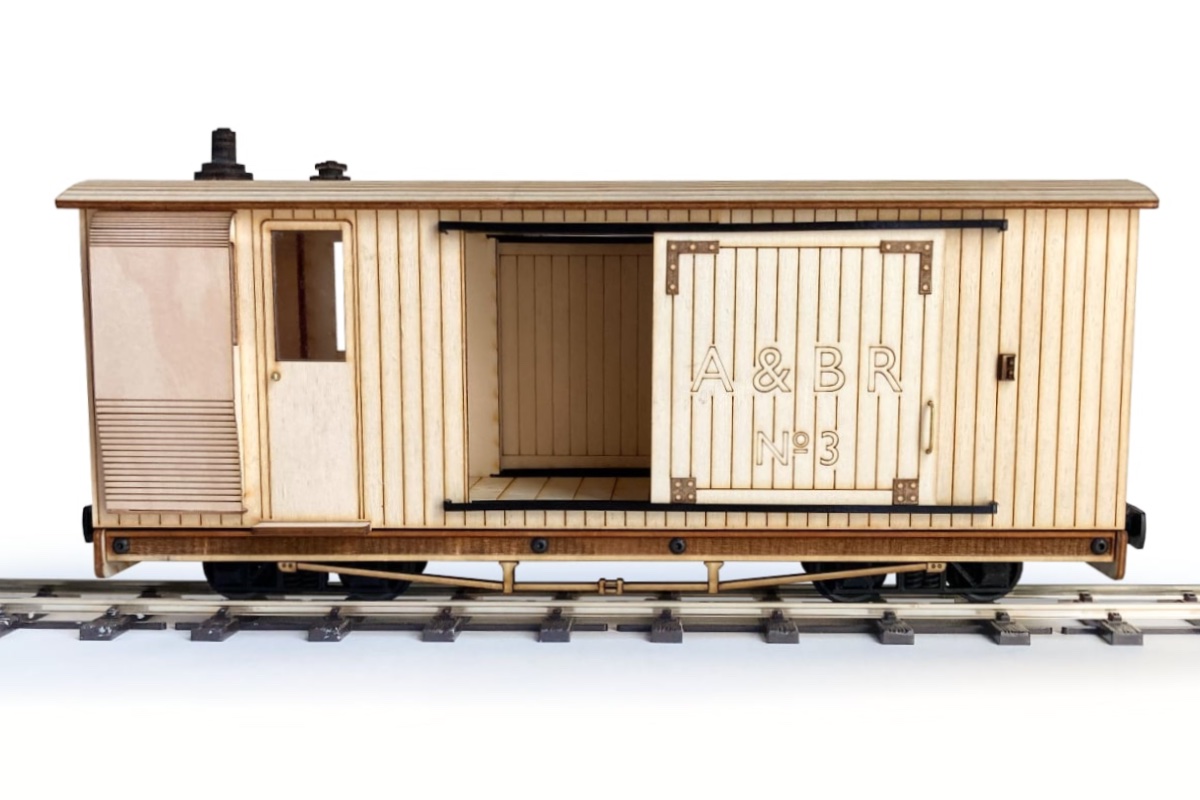

The bogie guards/box van is primarily made from laser cut plywood with a mix of plywood, 3D printed and brass details. Windows are lasercut plastic and the couplings are peterbinnie centre buffers.

The bogies consist of 3D printed parts and use glass re-enforced plastic wheels with stainless steel axles and nylon bearings.

Dimensions:
Overall width 112 mm
Body width 94 mm
Height above rails: to roof 140 mm, including details 156 mm
Overall length (inc buffers) 362 mm
Roof length 340 mm

Assembly requires:
Glue (PVA, superglue or similar)
2 mm allen key
2.5 mm allen key
Clamps, elastic bands or tape would also be useful.

See below for the parts list or click here for build instructions.

Parts List

For larger views click/tap on the images.

Frame / Base

2x Frame Centre Spacers
2x Frame End Spacers
2x Frame Beams
1x Base
8x M3 x 12 mm Screws
8x M3 Nuts
2x Buffer Beams
2x Buffers

Main Body

1x Left Side + 1x Right Side
1x End Panel (for steps)
1x End Panel (with vent)
1x Bulkhead
1x Roof
2x Sliding Doors
2x Sliding Door Braces
4x Roof Braces
4x Door Runners (2x left + 2x right handed)
2x Door Steps
4x Lookout Sides + 4x Windows
2x Lookout Covers
3x Door Windows

Detail Parts

4x Square + 4x Angle Door Details
2x Small Steps + 1x Large Step
2x Tensioners
2x Door Knobs
2x Door Handles
2x Door Stops
2x Roof Details
1x Vent Cover

Bogie Parts

4x Bogie Sides (2 per bogie)
2x Bogie Beams (1 per bogie)
2x Pivot Beams (1 per bogie)
8x Bearings (4 per bogie)
4x Axles (2 per bogie)
8x Wheels (4 per bogie)
4x M3 x 6 mm Screws (2 per bogie)
8x M3 x 12 mm Screws (4 per bogie)
2x M4 x 14 mm Screws (1 per bogie)
2x M4 Locking Nuts (1 per bogie)
2x Small Washers (1 per bogie)
4x Large Washers (2 per bogie)
